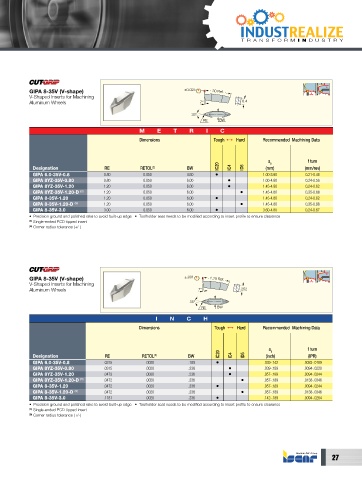

GIPA 8-35V (V-shape) ±0.025 30 Ref.
V-Shaped Inserts for Machining
Aluminum Wheels 7° 6.4

35°
RE BW
M E T R I C
Dimensions Tough 1 Hard Recommended Machining Data

a p f turn
Designation RE RETOL (2) BW IC20 IC4 ID5 (mm) (mm/rev)
GIPA 6.0-35V-0.8 0.80 0.050 4.80 • 1.00-3.60 0.21-0.48
GIPA 8YZ-35V-0.80 0.80 0.050 6.00 • 1.00-4.80 0.24-0.56
GIPA 8YZ-35V-1.20 1.20 0.050 6.00 • 1.45-4.80 0.24-0.62
GIPA 8YZ-35V-1.20-D (1) 1.20 0.050 6.00 • 1.45-4.80 0.35-0.88
GIPA 8-35V-1.20 1.20 0.050 6.00 • 1.45-4.80 0.24-0.62
GIPA 8-35V-1.20-D (1) 1.20 0.050 6.00 • 1.45-4.80 0.35-0.88
GIPA 8-35V-3.0 3.00 0.050 6.00 • 3.60-4.80 0.24-0.67
• Precision ground and polished rake to avoid built-up edge • Toolholder seat needs to be modified according to insert profile to ensure clearance
(1) Single-ended PCD tipped insert
(2) Corner radius tolerance (+/-)

GIPA 8-35V (V-shape) ±.001 1.18 Ref.
V-Shaped Inserts for Machining
Aluminum Wheels 7° .252

35°
RE BW
I N C H
Dimensions Tough 1 Hard Recommended Machining Data

a p f turn
Designation RE RETOL (2) BW IC20 IC4 ID5 (inch) (IPR)
GIPA 6.0-35V-0.8 .0315 .0020 .189 • .039-.142 .0083-.0189
GIPA 8YZ-35V-0.80 .0315 .0020 .236 • .039-.189 .0094-.0220
GIPA 8YZ-35V-1.20 .0472 .0020 .236 • .057-.189 .0094-.0244
GIPA 8YZ-35V-1.20-D (1) .0472 .0020 .236 • .057-.189 .0138-.0346
GIPA 8-35V-1.20 .0472 .0020 .236 • .057-.189 .0094-.0244
GIPA 8-35V-1.20-D (1) .0472 .0020 .236 • .057-.189 .0138-.0346
GIPA 8-35V-3.0 .1181 .0020 .236 • .142-.189 .0094-.0264
• Precision ground and polished rake to avoid built-up edge • Toolholder seat needs to be modified according to insert profile to ensure clearance
(1) Single-ended PCD tipped insert
(2) Corner radius tolerance (+/-)
