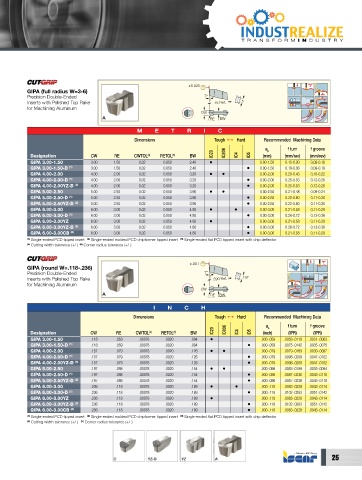

Page 25 - Aluminium_wheel_brochure_2022_en

±0.025
GIPA (full radius W=3-6)
Precision Double-Ended 7°
Inserts with Polished Top Rake 15 Ref. 5
for Machining Aluminum
CW
RE BW

M E T R I C
Dimensions Tough 1 Hard Recommended Machining Data
f turn
f groove
a
p
Designation CW RE CWTOL (4) RETOL (5) BW IC20 IC806 IC4 ID5 (mm) (mm/rev) (mm/rev)
GIPA 3.00-1.50 3.00 1.50 0.02 0.050 2.40 • 0.00-1.50 0.15-0.30 0.08-0.16
GIPA 3.00-1.50-D (1) 3.00 1.50 0.02 0.050 2.40 • 0.00-1.50 0.19-0.36 0.09-0.19
GIPA 4.00-2.00 4.00 2.00 0.02 0.050 3.20 • • 0.00-2.00 0.20-0.43 0.10-0.22
GIPA 4.00-2.00-D (1) 4.00 2.00 0.02 0.050 3.20 • 0.00-2.00 0.25-0.53 0.12-0.26
GIPA 4.00-2.00YZ-D (2) 4.00 2.00 0.02 0.050 3.20 • 0.00-2.00 0.25-0.53 0.12-0.26
GIPA 5.00-2.50 5.00 2.50 0.02 0.050 3.90 • • 0.00-2.50 0.21-0.48 0.09-0.24
GIPA 5.00-2.50-D (1) 5.00 2.50 0.02 0.050 3.90 • 0.00-2.50 0.22-0.60 0.11-0.30
GIPA 5.00-2.50YZ-D (2) 5.00 2.50 0.02 0.050 3.90 • 0.00-2.50 0.22-0.60 0.11-0.30
GIPA 6.00-3.00 6.00 3.00 0.02 0.050 4.80 • • 0.00-3.00 0.21-0.58 0.11-0.29
GIPA 6.00-3.00-D (1) 6.00 3.00 0.02 0.050 4.80 • 0.00-3.00 0.26-0.72 0.13-0.36
GIPA 6.00-3.00YZ 6.00 3.00 0.02 0.050 4.80 • 0.00-3.00 0.21-0.58 0.11-0.29
GIPA 6.00-3.00YZ-D (2) 6.00 3.00 0.02 0.050 4.80 • 0.00-3.00 0.26-0.72 0.13-0.36
GIPA 6.00-3.00CB (3) 6.00 3.00 0.02 0.050 4.80 • 0.00-3.00 0.21-0.58 0.11-0.29
Single-ended PCD tipped insert Single-ended molded PCD chipformer tipped insert Single-ended flat PCD tipped insert with chip deflector
(1) (2) (3)
Cutting width tolerance (+/-) Corner radius tolerance (+/-)
(4) (5)

±.001
GIPA (round W=.118-.236)
Precision Double-Ended 7°
Inserts with Polished Top Rake .590 Ref. .197
for Machining Aluminum
CW
RE BW
I N C H
Dimensions Tough 1 Hard Recommended Machining Data
a
p
(IPR)
Designation CW RE CWTOL (4) RETOL (5) BW IC20 IC806 IC4 ID5 (inch) f turn f groove
(IPR)
GIPA 3.00-1.50 .118 .059 .00078 .0020 .094 • .000-.059 .0059-.0118 .0031-.0063
GIPA 3.00-1.50-D (1) .118 .059 .00078 .0020 .094 • .000-.059 .0075-.0142 .0035-.0075
GIPA 4.00-2.00 .157 .079 .00078 .0020 .126 • • .000-.079 .0079-.0169 .0039-.0087
GIPA 4.00-2.00-D (1) .157 .079 .00078 .0020 .126 • .000-.079 .0098-.0209 .0047-.0102
GIPA 4.00-2.00YZ-D (2) .157 .079 .00078 .0020 .126 • .000-.079 .0098-.0209 .0047-.0102
GIPA 5.00-2.50 .197 .098 .00078 .0020 .154 • • .000-.098 .0083-.0189 .0035-.0094
GIPA 5.00-2.50-D (1) .197 .098 .00078 .0020 .154 • .000-.098 .0087-.0236 .0043-.0118
GIPA 5.00-2.50YZ-D (2) .197 .098 .00078 .0020 .154 • .000-.098 .0087-.0236 .0043-.0118
GIPA 6.00-3.00 .236 .118 .00078 .0020 .189 • • .000-.118 .0083-.0228 .0043-.0114
GIPA 6.00-3.00-D (1) .236 .118 .00078 .0020 .189 • .000-.118 .0102-.0283 .0051-.0142
GIPA 6.00-3.00YZ .236 .118 .00078 .0020 .189 • .000-.118 .0083-.0228 .0043-.0114
GIPA 6.00-3.00YZ-D (2) .236 .118 .00078 .0020 .189 • .000-.118 .0102-.0283 .0051-.0142
GIPA 6.00-3.00CB (3) .236 .118 .00078 .0020 .189 • .000-.118 .0083-.0228 .0043-.0114
(1) Single-ended PCD tipped insert (2) Single-ended molded PCD chipformer tipped insert (3) Single-ended flat PCD tipped insert with chip deflector
(4) Cutting width tolerance (+/-) (5) Corner radius tolerance (+/-)
