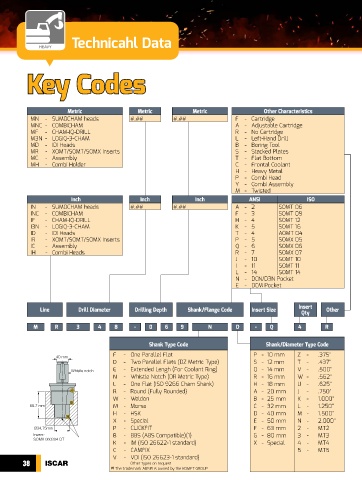

Page 38 - ISCARs-solutions-for-Heavy-Machining-2022

Technicahl Data
HEAVY

y C
e
K Key Codes
odes

Metric Metric Metric Other Characteristics
MN - SUMOCHAM heads #.## #.## F - Cartridge
MNC - COMBICHAM A - Adjustable Cartridge
MF - CHAM-IQ-DRILL R - No Cartridge
M3N - LOGIQ-3-CHAM L - Left-Hand Drill
MD - IDI Heads B - Boring Tool
MR - XOMT/SOMT/SOMX Inserts S - Stacked Plates
MC - Assembly T - Flat Bottom
MH - Combi Holder C - Frontal Coolant
H - Heavy Metal
P - Combi Head
Y - Combi Assembly
M - Twisted
Inch Inch Inch ANSI ISO
IN - SUMOCHAM heads #.## #.## A - 2 SOMT 06
INC - COMBICHAM F - 3 SOMT 09
IF - CHAM-IQ-DRILL H - 4 SOMT 12
I3N - LOGIQ-3-CHAM K - 5 SOMT 16
ID - IDI Heads T - 4 AOMT 04
IR - XOMT/SOMT/SOMX Inserts P - 5 SOMX 05
IC - Assembly Q - 6 SOMX 06
IH - Combi Heads R - 7 SOMX 07
J - 10 SOMT 10
I - 11 SOMT 11
L - 14 SOMT 14
N - DCN/D3N Pocket
E - DCM Pocket

Line Drill Diameter Drilling Depth Shank/Flange Code Insert Size Insert Other
Qty

M R 3 4 8 - 0 6 9 N D - Q 4 R

Shank Type Code Shank/Diameter Type Code
F - One Parallel Flat P - 10 mm Z - .375"
40 mm
D - Two Parallel Flats (DZ Metric Type) S - 12 mm T - .437"
Whistle notch E - Extended Lengh (For Coolant Ring) Q - 14 mm V - .500"
N - Whistle Notch (DR Metric Type) R - 16 mm W - .562"
L - One Flat (ISO 9266 Cham Shank) H - 18 mm U - .625"
R - Round (Fully Rounded) A - 20 mm J - .750"
W - Weldon B - 25 mm K - 1.000"
68.7 mm M - Morse C - 32 mm L - 1.250"
H - HSK D - 40 mm M - 1.500"
X - Special E - 50 mm N - 2.000"
Ø34.75mm P - CLICKFIT F - 63 mm 2 - MT2
Insers- B - BBS (ABS Compatible)(1) G - 80 mm 3 - MT3
SOMX 060304-DT
K - IM (ISO 26622-1 standard) X - Special 4 - MT4
C - CAMFIX 5 - MT5
V - VDI (ISO 26623-1 standard)
38 ISCAR Other types on request
(1) The trademark ABS® is owned by the KOMET GROUP
