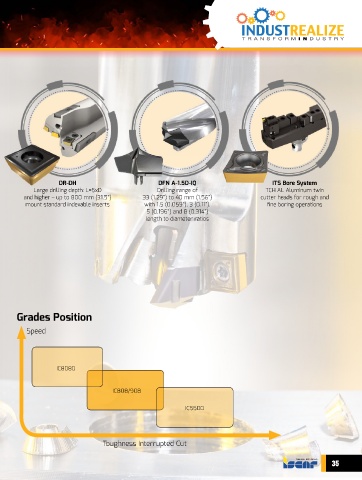

DR-DH                            DFN A-1.5D-IQ                          ITS Bore System
            Large drilling depth: L=5xD               Drilling range of                   TCH AL Aluminum twin
         and higher – up to 800 mm (31.5”)       33 (1.29”) to 40 mm (1.56”)             cutter heads for rough and
          mount standard indexable inserts        with 1.5 (0.059”), 3 (0.11”),            fine boring operations
                                                  5 (0.196”) and 8 (0.314”)
                                                  length to diameter ratios


















       Grades Position


          Speed






                    IC8080



                                       IC808/908

                                                               IC5500





                                    Toughness Interrupted Cut



                                                                                                                 35
