Heavy Machining
HEAVY

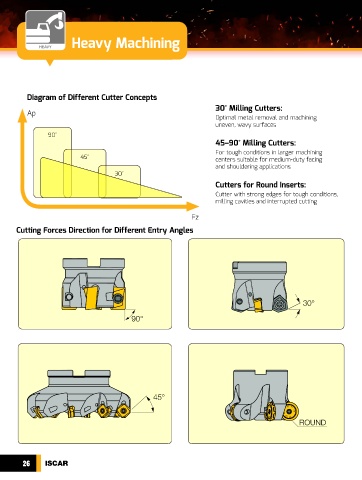

Diagram of Different Cutter Concepts

30° Milling Cutters:
Ap
Optimal metal removal and machining
uneven, wavy surfaces
90˚
45–90° Milling Cutters:
For tough conditions in larger machining
45˚ centers suitable for medium-duty facing
and shouldering applications
30˚
Cutters for Round Inserts:
Cutter with strong edges for tough conditions,
milling cavities and interrupted cutting

Fz
Cutting Forces Direction for Different Entry Angles

30°

90°

45°

ROUND
