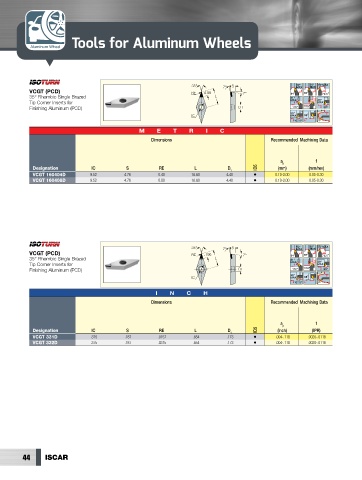

Tools for Aluminum Wheels
35° 7° S 52° 50° 70°MAX
MAX
MAX
VCGT (PCD) RE 4.99 7° 91° 93° 72.5 º
35° Rhombic Single Brazed L 31° 48°
Tip Corner Inserts for MAX MAX
Finishing Aluminum (PCD) D1 112° 117.5° 95º
35°
IC MAX 95 º
107.5º
M E T R I C
Dimensions Recommended Machining Data
a p f
Designation IC S RE L D 1 ID5 (mm) (mm/rev)
VCGT 160404D 9.52 4.76 0.40 16.60 4.40 • 0.10-3.00 0.05-0.30
VCGT 160408D 9.52 4.76 0.80 16.60 4.40 • 0.10-3.00 0.05-0.30
35° 7° S 52° 50° 70°MAX
MAX
MAX
VCGT (PCD) RE .196 7° 93° 72.5 º
91°
35° Rhombic Single Brazed L 31°
Tip Corner Inserts for MAX 48°
MAX
Finishing Aluminum (PCD) D1 112° 117.5° 95º
35°
IC MAX 95 º
107.5º
I N C H
Dimensions Recommended Machining Data
a p f
Designation IC S RE L D 1 ID5 (inch) (IPR)
VCGT 331D .375 .187 .0157 .654 .173 • .004-.118 .0020-.0118
VCGT 332D .375 .187 .0315 .654 .173 • .004-.118 .0020-.0118
